PROFESSIONAL CAMERAS

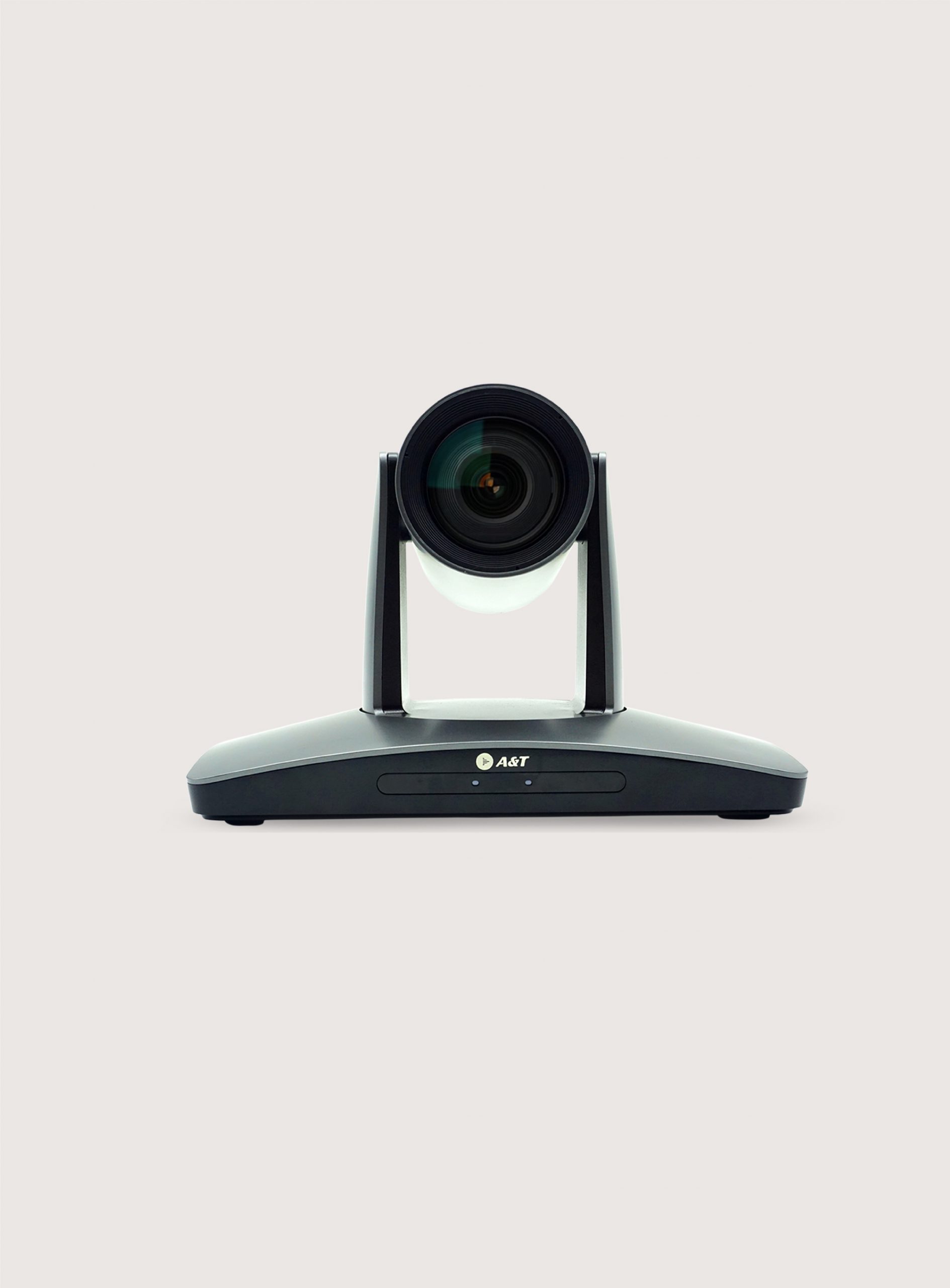

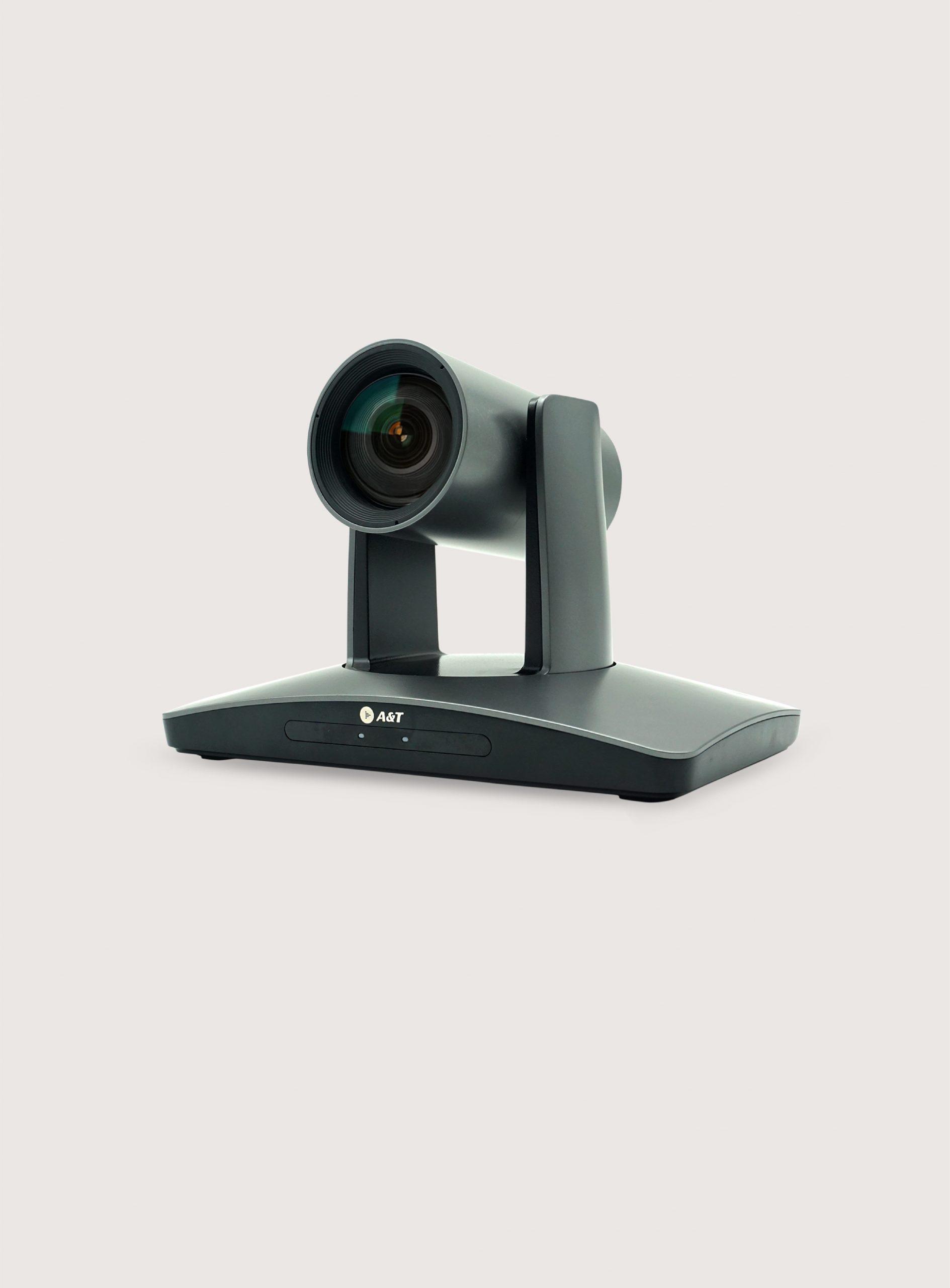

PTC 12N

  • Professional video conferencing camera for large meeting rooms
  • 12x zoom lens that captures every detail
  • NDI capability for live streaming directly from the camera
  • Multiple interfaces for virtually any kind of application
  • Compatible with all cloud video conferencing applications
  • Full HD video
  • 12x zoom
  • NDI capability
  • Compatible with all video conferencing applications
  • HDMI, USB, 3G-SDI and IP interfaces
  • Management software
  • Medium size meeting rooms
  • Town halls
  • Seminar halls
  • Lecture halls
  • Secondary camera for operation theaters

Secure Video Conferencing Camera

  • Image Sensor: 1/2.8″ CMOS, 2.14MP
  • Focal Length: f=3.9mm – 46.8mm
  • Iris: F1.6 – F3.8
  • Optical Zoom: 12X
  • Digital Zoom: 12X
  • FOV: 72.5°
  • Focus System: Auto, Manual, PTZ Trigger, One Push Trigger
  • Exposure Control: Auto, Manual, Shutter Priority, Iris Priority
  • Shutter Speed: 1/1 ~ 1/10,000s
  • Gain: Auto/Manual
  • White Balance: Auto, Manual, Indoor, Outdoor, Onepush
  • Wide Dynamic: Yes
  • BLC: Yes
  • DNR: 2D/3D
  • SN Ratio: >50dB

PTZ

  • Pan Angle/ Speed: -170° ~ +170°, 0.1° ~ 120°/S
  • Tilt Angle/ Speed: -30° ~ +90°, 0.1° ~ 80°/S
  • Presets: 256
  • OSD: Yes
  • Image Flip: Yes

Video Output

  • Video Format: 1080p60/50/30/25, 1080i60/50, 720p60/50

Network

  • Max Image Size: 1920×1080@60fps
  • Image Compression: H.264/H.265
  • Audio Compression of secure video conferencing camera: AAC
  • Protocols: ONVIF, RTSP, RTMP, HTTP, TCP, UDP
  • Dual Stream: Support

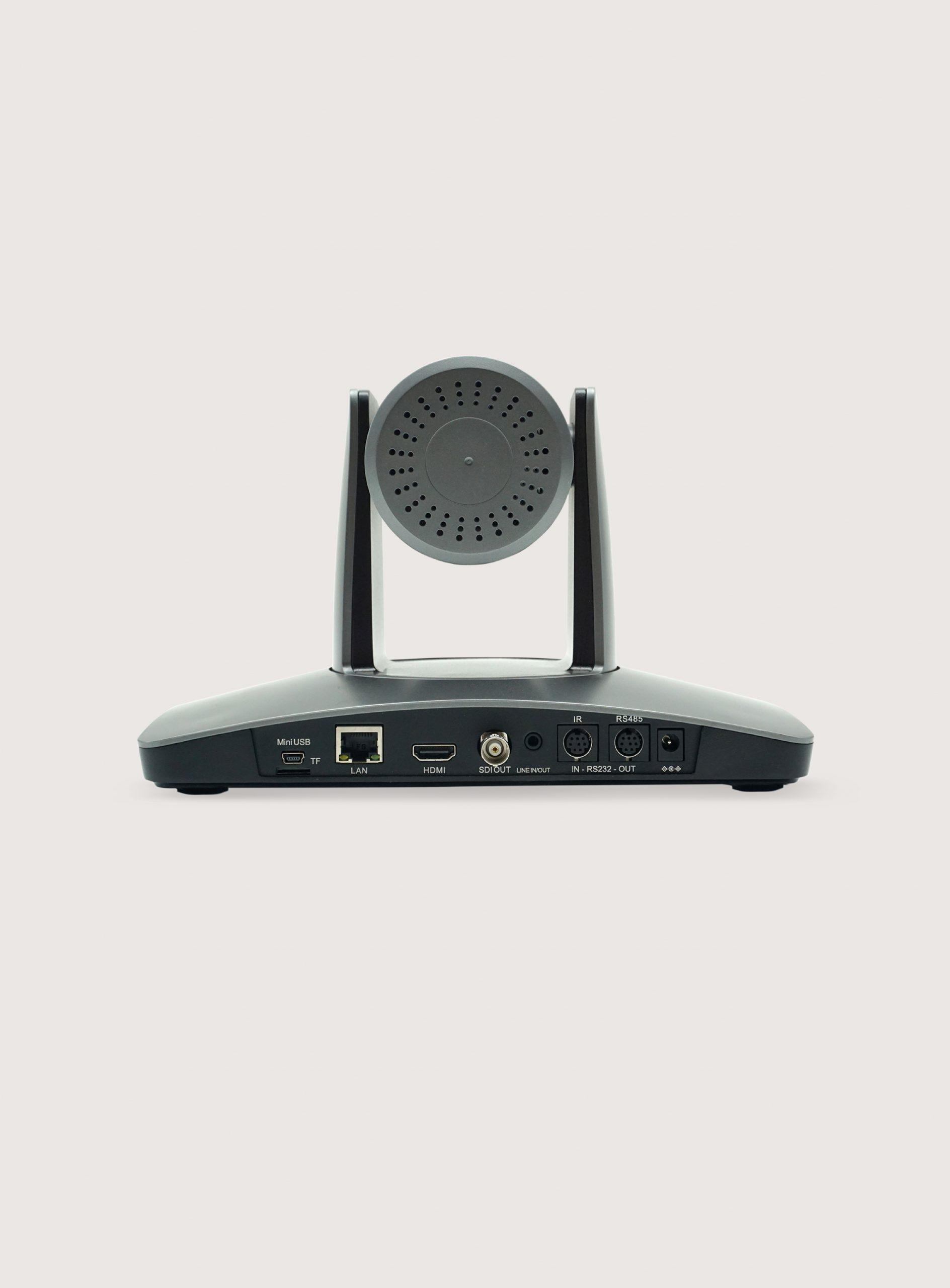

Interface

  • Video Output: 1×HDMI, 1×3G-SDI, 1×USB2.0, 1×Ethernet
  • Audio: 1×LINE IN
  • Network Interface: 10/100/1000M RJ45, PoE(optional)
  • Control Interface: 1×RS-485, 1×RS-232 IN, 1×RS-232 OUT
  • NDI: Supported

General

  • Protocols: VISCA (support daisy chain), PELCO-P, PELCO-D
  • Power: DC12V
  • Power Consumption: <15W
  • Operating Temperature: 0°C ~ +40°C
  • Storage Temperature: -20°C ~ +60°C
  • Dimensions L×W×H: 243mm×145mm×163mm
  • Screw / Mounting:  Standard tripod screw hole / Wall & Ceiling
  • Application: Free PTZ Management Software
  • Weight: 1.2KG
