Recorders & Streamers

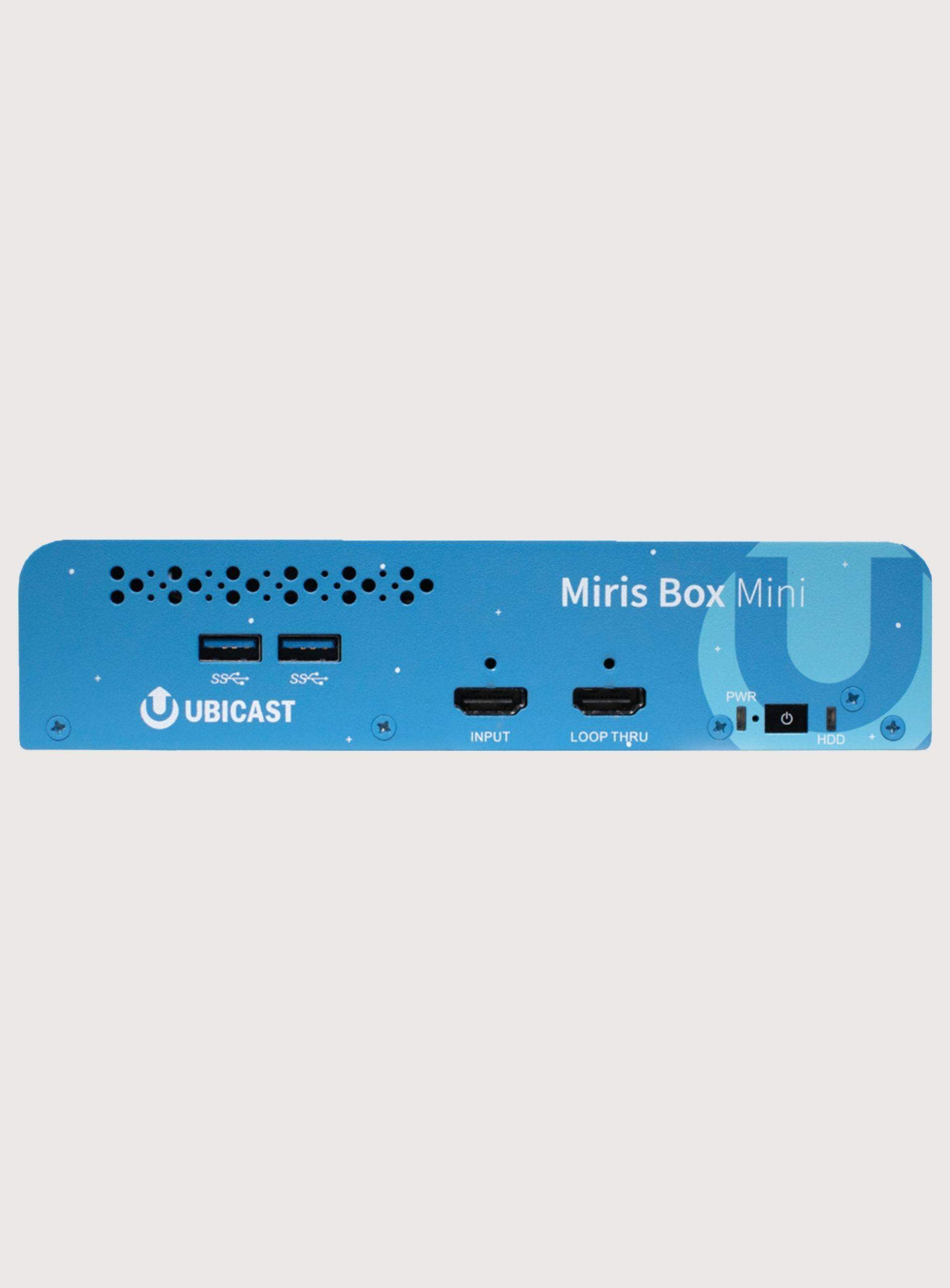

Miris Box Mini
-
Small appliance for recording and webcasting classes, conferences and training videos
-
Live or on demand webcasting
-
Schedule your recordings in advance or start them directly from Miris Manager
-
Capture two 1080p video sources simultaneously – HDMI and IP Camera – along with audio
-
Detailed analytics on each video and access
-
Easy to manage through Miris Manager software
-
Monitor all your rooms in real-time via your smartphone or tablet
-
Multiple interfaces for various applications
-
Work-from-anywhere
-
Huddle rooms
-
Online classrooms
-
Tele-consultation
Detailed Specification
Inputs/Outputs
Inputs:
-
Physical video inputs of the top 10 video conferencing equipment: 1 x HDMI (up to 1080p60) with loop out and HDCP capture support
-
1 x UVC USB3.0 video devices
-
Maximum simultaneously recording video sources: 2
-
Physical audio inputs: 1x 3,5mm jack unbalanced – 1x HDMI digital audio
-
Networked audio inputs: 1x Stereo Dante audio through optional Audinate AVIO 2×2 USB adapter supports audio from RTSP and NDI sources
-
Maximum RTSP/NDI sources count: 1x1080p or 2x720p
-
Recommended RTSP/NDI source bitrate: 720p: 8 Mbits/s, 1080p: 16 Mbits/s
Outputs:
-
Supported live outputs of the top 10 video conferencing equipment: HLS/H.264/AAC adaptive bitrate, JPEG (low-resolution snapshots)
-
Supported recording format: MP4/H.264/AAC
-
Maximum H.264 output resolution: 4k30 (3840×2160 at 30 fps)
-
Maximum H.264 output bitrate: 40 Mbits/s
-
Default H.264 output resolution: 2560 x 1440
-
Default H.264 output bitrate: 10 Mbits/s
-
Supported framerates: 25, 30 fps
-
Maximum recording duration guaranteed: 4 hours
-
Approximate file size: 1440p (5 Mbits/s): 2,2 GB/hour, 2160p (10 Mbits/s): 4,3 GB/hour
