PROFESSIONAL CAMERAS

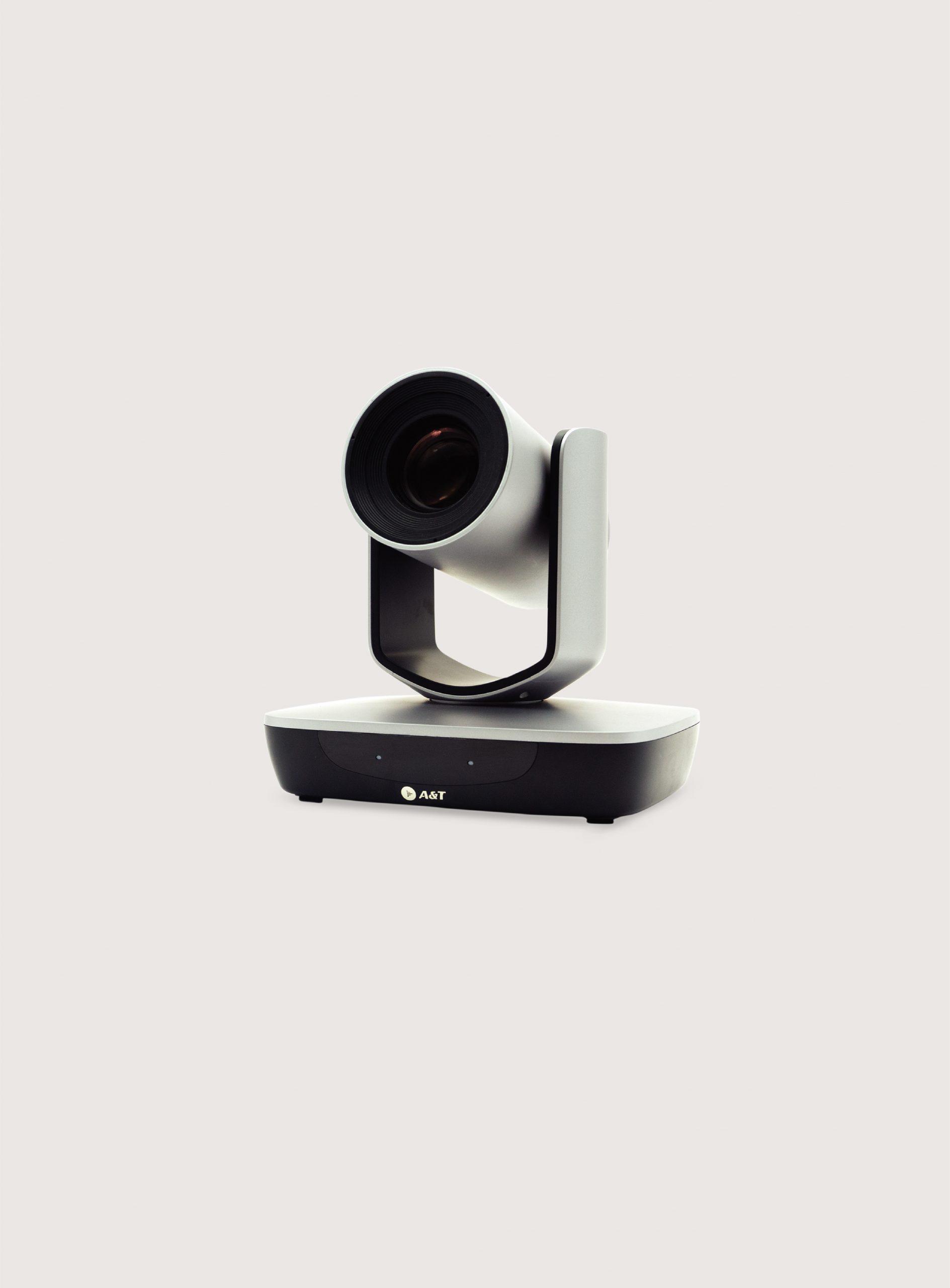

PTC 20MN
-
Professional AI auto tracking camera for video collaboration and live streaming
-
12x / 20x zoom lens that captures every detail
-
NDI capability (optional)
-
Multiple tracking modes – presenter or preset – for a wide range of applications
-
Multiple interfaces for virtually any kind of application
-
Compatible with all hardware and cloud based video collaboration applications
-
Full HD video
-
12x / 20x zoom
-
Presenter or preset tracking modes
-
NDI capability (optional)
-
Compatible with all video conferencing applications
-
HDMI, USB, 3G-SDI and IP interfaces
-
Management software
-
Large to medium lecture halls
-
Town halls
-
Seminar halls
-
Places of worship
Featured Products
PTC 12N
PTC 20N
PTC 30N
PTC 12N
Detailed Specification
Intelligent PTZ Tracking Camera
The PTC 20MN is a professional camera that uses Artificial Intelligence to precisely and accurately track speakers anywhere in hybrid classrooms, training sessions, home office video conferencing and video conferences. NDI® compatibility makes live broadcasts faster, better and simpler. The Powerful 12X / 20X sensor ensures you capture, sharper, clearer and more accurate images.
Multiple Modes
Choose to track the speaker or capture every detail from multiple specific preset zones
Human Detection
In-built intelligence ensures the camera follows the lecturer anywhere in the classroom.
Camera
-
Focus System Auto, Manual, PTZ Trigger, One Push Triggr
-
Shutter Speed 1/25 – 1/10,000s
-
Gain Auto, Manual
-
White Balance Auto, Manual, Indoor, Outdoor
-
Exposure Control Auto, Manual, Shutter Priority, Iris Priority
-
S/N >50dB
PTZ
-
Pan Angle/ Speed -170° ~ +170°, 0.2°/S ~ 100°/S
-
Tilt Angle/ Speed -30° ~ +90°, 0.2/S – 60°/S
-
Presets 255
-
Tracking Modes Presenter Tracking, Preset Tracking & Hybrid Tracking
Network
-
Max Image Size 1920×[email protected]
-
Image Compression H.265/H.264
-
Audio Compression AAC
-
Protocols ONVIF, RTSP, RTMP, HTTP, TCP, UDP
-
Dual Stream Support
USB
-
USB Interface USB 3.0
-
UVC, UAC Support
-
Video Interface H.264/MJPEG
-
Image Size 1920×1080, 1280×720, 640×360
General
-
Protocols VISCA, PELCO-P, PELCO-D
-
Power DC12V
-
Power Consumption <15W
-
Operating Temperature 0°C ~ +40°C
-
Storage Temperature -20°C ~ +60°C
-
Operating Humidity 10% RH ~ 90% RH
-
Screw / Mounting Standard tripod screw hole / Wall & Ceiling
-
Application Free PTZ Management Software
-
used for home office video conferencing
