VC CAMERAS

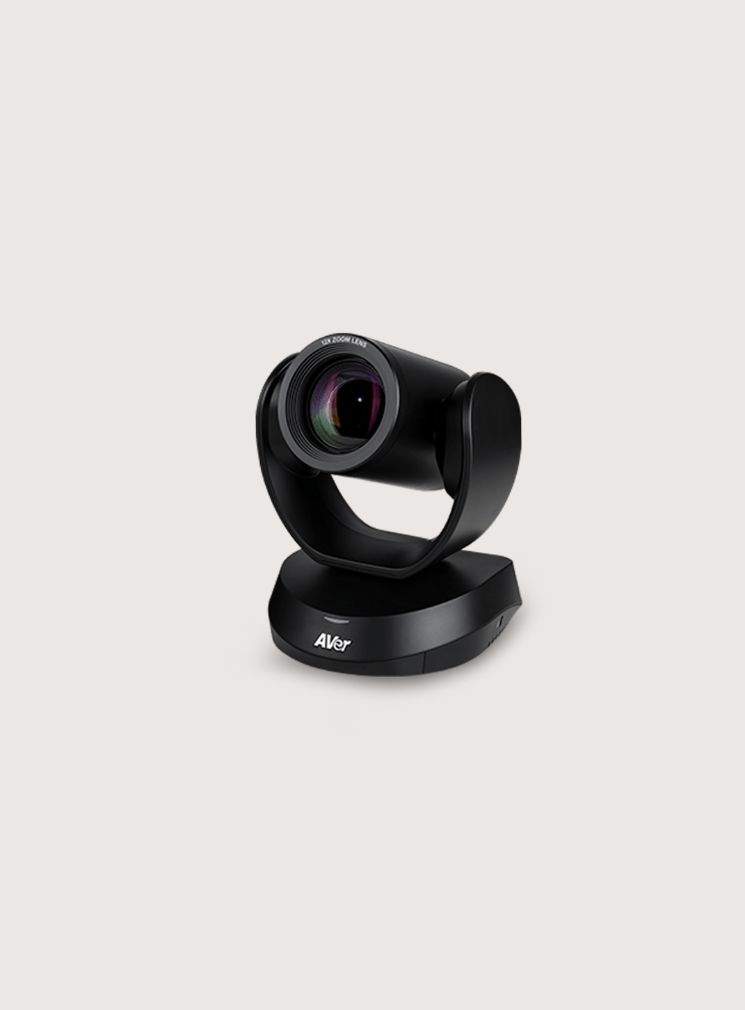

VC520 Pro3
- Professional video conferencing system with 36x zoom that is designed for boardrooms and large conference rooms
- Technologies such as SmartFrame and WDR ensures that everyone in the room is captured clearly even in poor lighting
- Advanced speakerphone with an option of expansion speakerphones or microphones delivers crisp audio in any part of the medium to large rooms
- Compatible with all video conferencing applications
- Full HD video
- 36X zoom captures every detail
- Mechanical PTZ with remote control
- Wired speakerphone with provision to expand 4 microphones or 3 speakerphones
- SmartFrame technology automatically captures everyone in the room in a single frame
- WDR captures clear video even in poor lighting conditions
- Compatible with all video conferencing applications
- Multiple interfaces – USB 3.1, HDMI, LAN, RS232 IN/OUT
- RTMP and RTSP Support
- Free Recording and Streaming software
- Free Management software
- Medium to large conference rooms
- Board rooms
Camera
- Sony super-low-light 8M pixel sensor, clear and natural imaging in
low-light conditions, providing ultra FHD image quality. - Resolution: (16:9) 1920 x 1080, 1280 x720 at 60, 30, 15fps; 1600 x 900,
960 x 540, 848 x 480, 800 x 448, 640 x 360, 424 x240, 320 x 180 at 30,
15fps; (4:3) 1280 x 960, 800 x 600, 640 x 480, 480 x 360, 320 x 240 at
30,15fps - SmartFrame for automatic FOV adjustment to fit all participants.
- Smart Composition function offers great visibility for the individual participant in the meeting room.
- Innovative Preset Framing: Follow the presenter based on preset areas.
- WDR: Superb backlight compensation technology for optimizing light
balance in high-contrast conditions. - Zoom: 36X* total zoom (12X optical zoom)
- Field of view(D/H/V): 80.5°/72.8°/44.1°
- Lens focal length: 3.9 mm (wide) ~ 46.8 mm (tele)
- Lens F#: 1.6 (wide) ~ 2.8 (tele)
- Mirror, flip, white balance: Auto/manual override via PTZApp 2
- Minimum focus distance: 1m
- Standard tripod screw holes and Kensington slot.
- People-counting API: Enterprises and third-party software providers
can obtain people-counting data for a better understanding of meeting
space usage.
USB
- 3.1 Gen 1 Type-B, backward compatible with USB 2.0
- UVC (USB video class) 1.1
- UAC (USB audio class) 1.0
Power Supply
- AC 100V ~ 240V, 50/60 Hz
- Consumption: 12V, 5A
Optional Accessories
- Mini DIN8 to D-SUB9 RS232 adapter
- Expansion Speakerphone
- Expansion Microphone
- Foldable TV mount
- USB3.1 fiber extender 10m
- USB3.1 type-B to type-A cable 3m
- Ceiling mount
Motorized Pan & Tilt Movement
- Pan: ±170°
- Tilt: +90° (up) -30° (down)
- 10 camera presets (via remote control)
- Fast and quiet pan & tilt movement
Video Format
- YUV, YUY2, MJPEG
- Network video compression format: H.264
- Network protocol: RTSP, RTMP
Connectivity
- 12V/5A power adaptor
- Mini DIN9 for RS232 in & out connection (VISCA control panel and camera daisy-chain)
- USB 3.1 Type-B connector
- IP (RJ45)
- HDMI out
Control
- IR remote control
- VISCA/Pelco-P/Pelco-D via RS232 (128 preset points via VISCA command)
- Remote side: VISCA over IP, IP (RJ45)
- UVC/UAC plug-and-play
- WebUI: Browser IP access via Chrome (does not support Internet Explorer)
- PTZApp 2
Control
- IR remote control
- VISCA/Pelco-P/Pelco-D via RS232 (128 preset points via VISCA command)
- Remote side: VISCA over IP, IP (RJ45)
- UVC/UAC plug-and-play
- WebUI: Browser IP access via Chrome (does not support Internet Explorer)
- PTZApp 2
Dimensions
- Package dimensions: 259 x 259 x 349 mm
- Package weight: 5.805 kg
- Camera: 150 x 153 x 182 mm/1.53 kg
- Speakerphone: 220 x 181.5 x 49.5 mm/0.85 kg
- Remote control: 200 x 50 x 21 mm/0.09 kg
Environmental Data
- Operation temperature: 0°C ~ 40°C
- Operation humidity: 20% ~ 80°C
- Storage temperature: -20°C ~ 60%
- Storage humidity: 20% ~ 80%
Compatible Applications
- Zoom, Microsoft® Teams, Skype for Business, Skype, Google Meet, Intel® Unite™, RingCentral, BlueJeans, V-Cube, LiveOn, CyberLink U
Meeting® , TrueConf, Adobe® Connect™, Cisco Webex® , Fuze,
GoToMeeting™, Vidyo, vMix, WebRTC, Wirecast, XSplit
Mount
- Camera wall-mount bracket included
- Optional foldable TV mount
- Optional ceiling mount
System Requirements
- Windows® 7/10/11
- Mac OS X 10.4 or later
- Google Chromebox 3 version 94.0.4606.114 or later
PC Hardware Requirement
- 3.2 GHz Intel® Core™ i5-4460 processor
- 4 GB RAM or more
- USB 3.1 port, backward compatible with USB2.0 port
Webpage Browser Requirement
- Chrome: Version 76.x or above
- Firefox: Version 69 or above
- IE: Not support
Speakerphone
- Echo cancellation
- Advanced noise suppression
- Dual-omnidirectional microphone
- 3.5 mm phone-in jack
- 3.5 mm line out
- Speaker: 6W, Adjustable to 90dB SPL at 0.5 m
- Touch controls for volume down/up, mute, phone input, call, hang-up
- Bridge phone-in and USB into one call
- Security: Kensington slot
Audio Format
- AAC-LC
- Network protocol: RTSP, RTMP
Package Contents
- VC520 Pro3 Camera
- VC520 Pro3 Speakerphone
- Remote control
- Power adapter
- Power cord (6 ft/1.8 m)
- USB2.0 type-B to type-A cable (16.5 ft/5 m)
- Camera to Speakerphone Cable (33ft/ 10m)
- 3.5 mm aux cable (3 ft/0.9 m)
- QR code card
- Wall-mount bracket
- ¼” Tripod screw
Warranty
- Camera/Speakerphone: 3 years*
- Accessories: 1 year
Frequently Asked Questions (FAQs)
What makes the Aver Camera VC-520 Pro3 ideal for enterprise use?
The Aver Camera VC-520 Pro3 is designed for enterprise Aver conferencing systems, delivering advanced PTZ functionality, 4K imaging, and seamless integration with professional meeting platforms.
Does the Aver Camera VC-520 Pro3 support 4K high-definition video output?
Yes. As a high-definition Aver PTZ camera, it offers crisp 4K resolution with adaptive zoom and dynamic range, ensuring clarity for hybrid and large-room conferencing.
What connectivity options are available in the Aver Camera VC-520 Pro3?
The VC-520 Pro3 provides USB 3.1, HDMI, IP streaming, and RS-232 control, enabling flexible setup across enterprise Aver conferencing systems.
Can the Aver Camera VC-520 Pro3 be integrated into advanced meeting technology platforms?
Yes. This device is engineered for advanced Aver meeting technology, supporting Zoom, Microsoft Teams, Cisco Webex, and Google Meet with certified compatibility.
What is the zoom capability of the Aver Camera VC-520 Pro3?
It offers 12X optical zoom and 36X total zoom, making it a reliable choice for professional Aver video solutions in large meeting spaces.
Does the Aver Camera VC-520 Pro3 include AI-based features?
Yes. The camera supports AI auto-framing, speaker tracking, and dynamic focusing, ensuring smarter collaboration in professional environments.
What is the field of view (FOV) for the Aver Camera VC-520 Pro3?
The VC-520 Pro3 delivers a wide 84° FOV, providing comprehensive coverage for enterprise conference rooms and training spaces.
Can the Aver Camera VC-520 Pro3 be ceiling or wall-mounted?
Yes. The camera supports multiple mounting options—tripod, wall, or ceiling—for maximum flexibility in deploying enterprise Aver conferencing systems.
How does the Aver Camera VC-520 Pro3 ensure secure video conferencing?
As part of advanced Aver meeting technology, it includes AES-256 encryption, secure network streaming, and admin access controls for enterprise-grade security.
Is the Aver Camera VC-520 Pro3 scalable for hybrid conferencing setups?
Absolutely. Its professional Aver video solutions design makes it scalable for small huddle rooms to large hybrid boardrooms with multi-camera setups.
