VIDEO SOUNDBARS

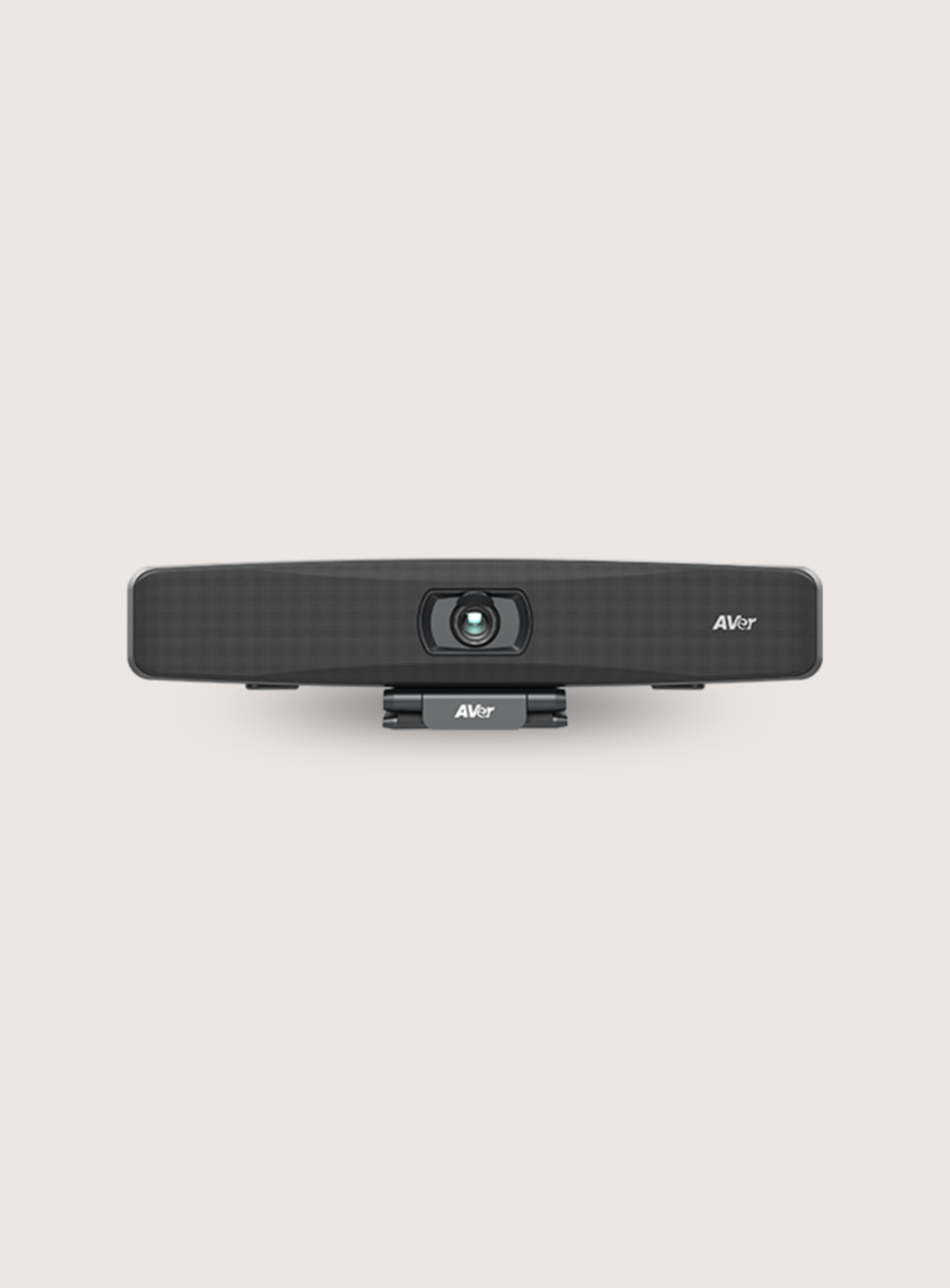

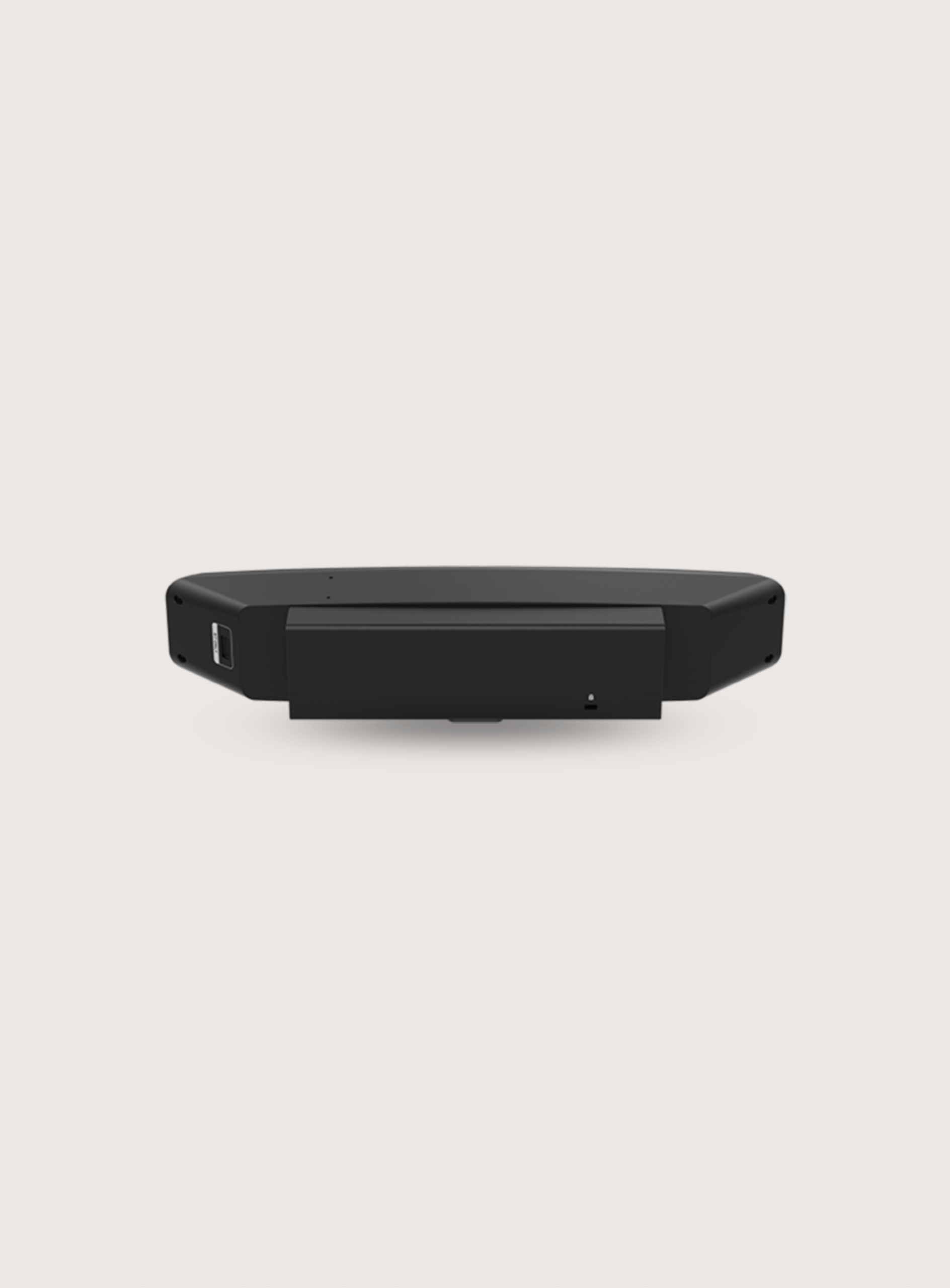

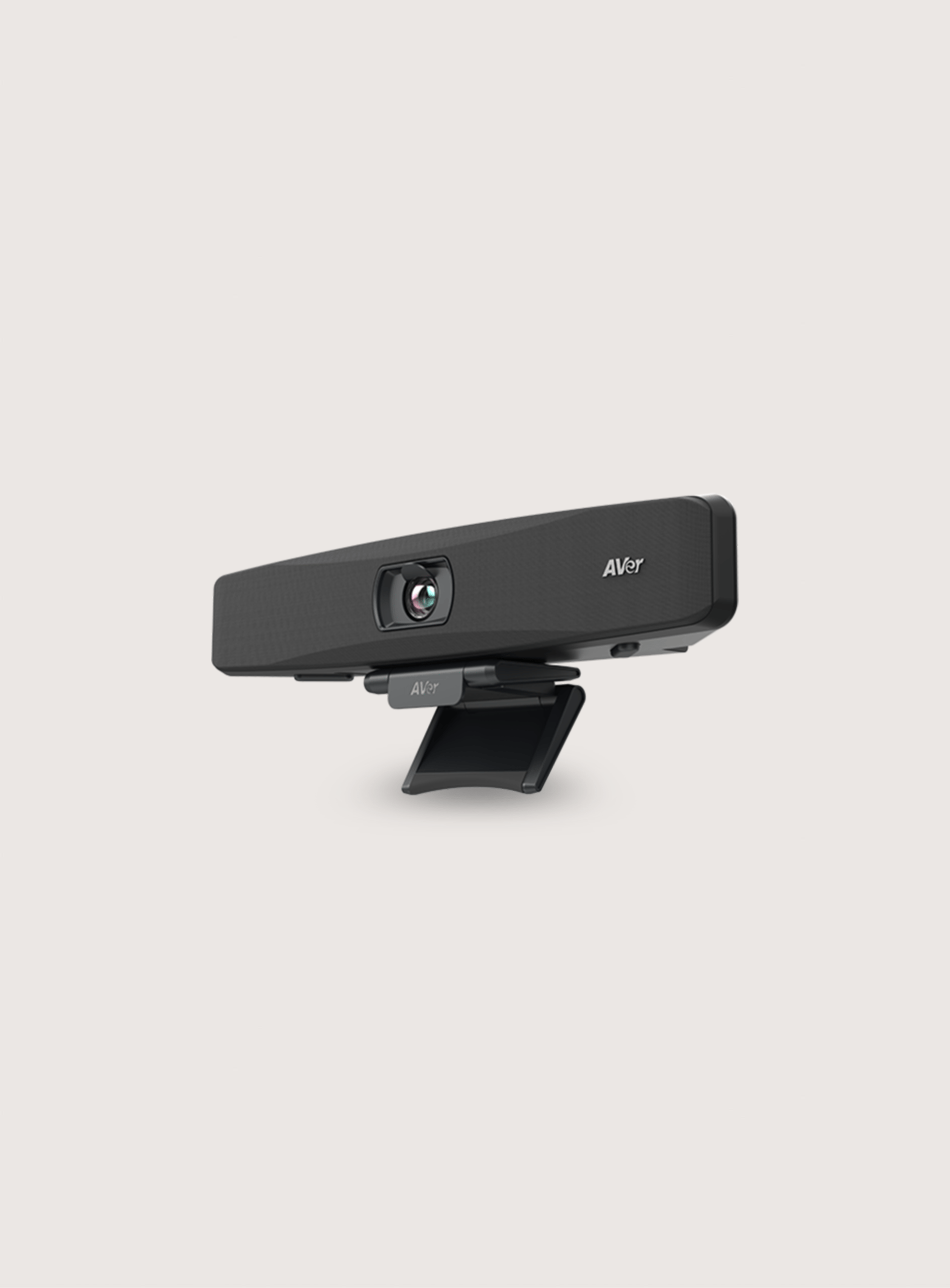

VB150
- It is an all-in-one video bar with integrated camera, speakers and microphones, built for simple plug-and-play conferencing or collaboration.
- Offers 4K Ultra HD resolution for crisp video, giving good clarity for participants or content.
- Includes AI features like voice tracking and smart composition, helping the camera automatically frame participants / speakers.
- It offers a ~120° field of view to capture a wide area of the meeting room or participants.
- It has built-in microphones plus audio capabilities and can expand audio coverage (so it is suitable for more participants or larger spaces).
- Designed for BYOD (bring your own device) scenarios, so users can plug in and use it with minimal setup.
- Small / Huddle Rooms
- Enterprise / Collaboration Rooms
Camera
- Image Sensor: 1/2.5” 4K Sony Exmor CMOS
- Effective Picture Elements: 8 Megapixels
- Output Resolutions: Up to 4K 30fps
- Minimum Illumination: 0.8 lux (IRE50, F2.4, 30fps)
- S/N Ratio: ≥ 50 dB
- Gain: Auto
- TV Line: 1400 (Center)
- Shutter Speed: Auto
- Exposure Control: Auto
- White Balance: Auto, Manual
- Digital Zoom: 5X
- Total Zoom: 5X
- Viewing Angles: DFOV: 120°, HFOV: 110°, VFOV: 75°
- Preset Positions: Up to 128
- Camera Control – Interfaces: IP, USB, Remote Control
- Camera Control – Protocols: VISCA (IP)*, CGI (IP), USB
- Camera Control – Touch Panel: AVer CP10 G2 Collaboration Touch Panel*
- Image Processing: WDR, 3D/2D Digital Noise Reduction
- Power Frequencies: 50 Hz, 60 Hz
Speaker
- Volume: 94 dB SPL ±2dB at 0.5 Meter Peak
- Sensitivity: 81 ±2dB SPL at T/S Parameter
- Frequency Response: 180 Hz to 20 KHz
- Sample Rates: 48 KHz
Microphones
- Beamforming Units: 5
- Pickup Range: 5 Meters
- Sensitivity: -35 ±1dB FS
- Frequency Response: 100 Hz to 12 KHz
- Acoustic Echo Cancellation (AEC): Yes
- Automatic Gain Control (AGC): Yes
- Noise Suppression: Yes
- Sample Rates: 24 KHz
- Expansion Microphone: Yes (One Microphone Only)
Software Tools
- Room Management: Supports Windows® 7 or later, macOS® 11.6 or later
- Enterprise Management: Supports Windows® 10 or later
- Cloud Management: Supports Chrome™ & Microsoft Edge browsers
USB
- Connector: USB 3.2
- Video Format: YUV, YUY2, MJPEG
- Audio Format: PCM
- Maximum Video Resolution: 4K 30fps
- USB Video Class (UVC): UVC 1.1
- USB Audio Class (UAC): UAC 1.0
General
- Power Requirement: AC 100V – 240V, 50/60 Hz
- Power Consumption: 60W
- Dimensions (W x H x D): 350 x 66 x 86 mm
- Net Weight: 0.84 kg ±0.1 kg
- Application: Indoor
- Security: Kensington Slot
- Remote Control: Infrared
- Operating Conditions: Temperature: 0 °C to +40 °C, Humidity: 20% to 80%
- Storage Conditions: Temperature: -20 °C to +60 °C, Humidity: 20% to 80%
Web UI
- Live Video Preview: Yes
- Camera/Image Adjustment: Exposure, White Balance
- Network Configuration: DHCP, IP Address, Gateway, Subnet Mask, DNS
- Supported Web Browsers: Chrome™, Microsoft Edge, Safari®
AVer AI Technologies
- Onboard AI: Yes
- Video AI*: Smart Composition, Auto Framing
- Audio AI*: Voice Tracking, Audio Fence, Beamforming Technology
Compatibility
Software & Apps: Zoom, Microsoft® Teams, Google Meet™, Intel® Unite™, RingCentral, BlueJeans, V-Cube, LiveOn, CyberLink U Meeting®, TrueConf, Adobe® Connect, Cisco Webex®, Fuze, GoToMeeting™, Vidyo, vMix, WebRTC, Wirecast, XSplit
Warranty*
- Camera: 3 years
- Accessories: 1 year
Package Contents
VB150, Power Adapter, Power Cable, Remote Control, USB Type-A to Type-C Adapter, USB 2.0 Type-A to Type-B Cable, Tripod Screw, Wall-Mount Kit
Optional Accessories
AVer CP10 G2 Collaboration Touch Panel (We offer a 3-year warranty), USB 3.1 Type-A to Type-B Cable, Extension Cable, Expansion Microphone, Bluetooth® Dongle, Screen Mount, TV VESA Mount Kit, Tripod
Interfaces
- HDMI Out: 1
- USB: USB Type-B 3.2 Gen 1 x 1
- Network: RJ-45 x 1
- Bluetooth®: Bluetooth® Low Energy
